OASE BioTec ScreenMatic2 18000 Filter
OASE BioTec Screenmatic² flow through filters with biological and mechanical filtration, clean and clear pond water which flows back down to the pond by gravity. The OASE BioTec Screenmatic² automatically separates debris using the self-cleaning screen, then depositing coarse debris into the removable tray. The adjustable intelligent cleaning sensor is mounted above the screen and detects buildup of debris and then automatically empties the screen into the debris tray. It has a high efficiency filter system that features 3 different densities of foam harboring a variety of beneficial bacteria that removes harmful ammonia and nitrites. The double-sealed screen motor and reinforced screen material ensures an extended service life. The foam distribution and optimized water level in the container, ensures a longer filter service life, improved filtration and reduced maintenance. The Filter Foams clean directly inside the filter in the pond water to preserve beneficial bacteria colonies and reduce water waste. Slide the valve on the sludge drain to remove sludge and dirty water with minimal mess. You can add an optional Bitron C UVC clarifier to any Screenmatic² filter system for enhanced clarity and cleaner water. It qualifies for the OASE Clear Water Guarantee when paired with the proper pump and UVC Clarifier.

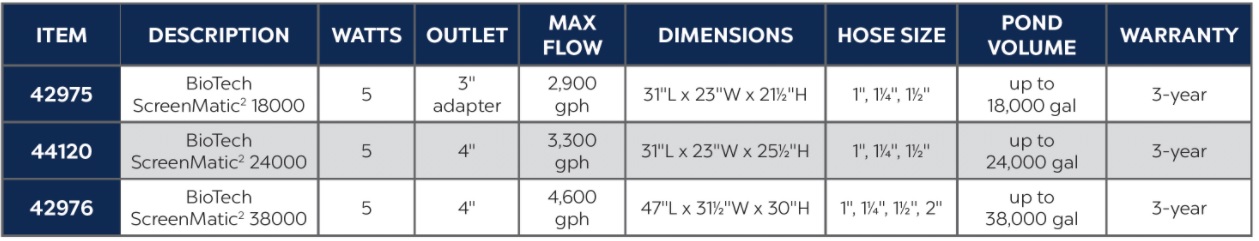

The BioTech ScreenMatic² 18000 has a 3” adapter outlet, a max flow of 2,900 GPH and dimensions of 31”L x 23”W x 21.5”H. It has hose sizes of 1”, 1.25” and 1.5” and a pond volume of up to 18,000 gallons. It has a 3-year warranty.
Features:
-
Flow through filters with biological and mechanical filtration clean and clear pond water which flows back down to the pond by gravity
- OASE BioTec Screenmatic2 automatically separates debris using the self-cleaning screen, depositing coarse debris into the removable tray
- Adjustable intelligent cleaning sensor mounted above screen detects buildup of debris and automatically empties screen into debris tray
- High efficiency filter system features 3 different densities of foam harboring a variety of beneficial bacteria that remove harmful ammonia and nitrites
- Double-sealed screen motor and reinforced screen material ensures an extended service life
- Foam distribution and optimized water level in the container ensure longer filter service life, improved filtration and reduced maintenance
- Filter foams clean directly inside the filter in pond water to preserve beneficial bacteria colonies and reduce water waste
- Slide valve on sludge drain removes sludge and dirty water with minimal mess
- Add an optional Bitron C UVC clarifier to any ScreenMatic2 filter system for enhanced clarity and cleaner water
- Qualifies for the OASE Clear Water Guarantee when paired with the proper pump and UVC Clarifier
Included:
- Filter
- Debris tray
- Phosless Cartridges
- Hose tail adapters
- Foam cleaning tool
- Transformer Inlet connectors
- Hose clamps
- Gaskets
Specifications:
- Dimensions: 31 x 23 x 21.5 in.
- Net Weight: 55 lbs.
- Operating Voltage: 120V / 60 Hz
- Power Consumption: 5W
- Power Cable Length: 7 ft (power supply) + 16.4 ft.
- Max. Flow Rate: Up To 4000 GPH
- Coarse Debris Separation: 300 Microns
- Input Connections: 1, 1 1/4, 1 1/2 in.
- Outlet Connections: 2 in.
- Sludge Drain Connections: 2 in.
Pond Size Recommendations:
- Max. Pond Size (no fish): 18000 gallons
- Max. Pond Size (small fish): 9000 gallons
- Max. Pond Size (Koi): 4500 gallons
