Description
1/4 HP Rotary Vane Dual Compressor System - 8 Diffusers
These long lasting, continuous duty Gast Rotary Vane Compressors offer slightly less depth capabilities than the diaphragm compressors but produce considerably more air.
- Medium pressure, oil-free compressors are excellent for pond and lake aeration and de-icing.
- Carbon vanes self adjust to maintain maximum operating depth.
- All models have an 18' maximum operating depth
- Air outlet assemblies are available with two, three, four or five valves, allowing one pump to supply up to to five air manifolds.
Compressors Specs:
- HP: 3/4 HP
- Units available in 115 or 230 volt
- Amps: 12.0 at 115v and 6.0 at 230v
- Max PSI: 10 psi
- Max Depth: 18 ft.
Compressors include:
- Air filter
- Power cord: 6 ft.
- Warranty: 1 year
CFM Air Flow @ Water Depth of:
- CFM @ 0 ft = 10
- CFM @ 6 ft = 9.6
- CFM @ 12 ft = 9.2
- CFM @ 18 ft = 9.0

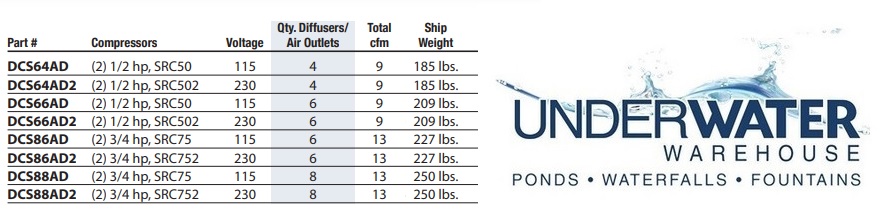

Kits include:
- (2) 3/4 HP Rotary Vane Compressors
- Cabinets with dual fans for increased cooling capability. Cabinets are mounted on equipment base and come complete with compressors, valve assemblies, pressure gauge, pressure relief valves, high volume cooling fans and electrical box
- (8) EasyPro Quick Sink Self-Weighted Diffuser Assembly - Double Diffuser
Recommended Accessories:
